5083 5182 5754 5454 aluminum plate sheet for liquid tank

5083 5182 5754 5454 aluminum plate sheet for liquid tank

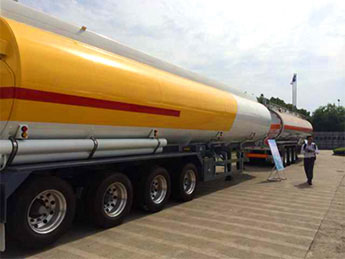

The transportation of aviation gasoline and kerosene jet tanker must use aluminum alloy plate sheet to  weld, circular rectangular section. Generally use 5083,5182,5754,5454 aluminum alloy plate sheet, thickness 5-6mm. In addition to tank car body, tank head use the the same materials 5083 alloy, head wall thickness is equal to or greater than the tank. thin tank tank bottom bearing plate thickness 6--8mm, the material is 5A06.

5083 aluminum plate

5182 aluminum sheet

5754 aluminum plate

5454 aluminum plate

5083 aluminum plate

The top of the tank is a guardrail and a platform. The platform is made of aluminum or mesh. The guardrail is made of aluminum tube. The height is not less than the maximum height of the roof function device. In order to reduce the accessories on the outside side of the tank and improve the appearance integrity, the top oil and gas recovery pipe, the control pipe, the conductor and the leakage pipe are all passed through the pipeline passing through the upper and lower walls of the tank. There is an aluminum tube on the lower side of the tank, which can be welded with the weld aluminum tube, which can be welded with the aluminum alloy saddle of the tank body.

5182 aluminum sheet

5754 aluminum plate

5454 aluminum plate

Features of aluminum plate sheet for liquid tank:
1. Large specification.
2. Medium strength
3. Quality surface
4. High formability.
5. Excellent corrosion resistance
6. Excellent welding performance

Parameters of aluminum plate sheet for liquid tank

Chemical Composition
Alloy series Si Fe Cu Mn Mg Cr Zn Ti
5083T Min. 0.40 4.0 0.05       -
Max. 0.40 0.40 0.10 1.0 4.90 0.25 0.25 0.15
5182T Min.     -        - 0.20 4.0      -      -
Max. 0.20 0.35 0.15 0.50 5.0 0.1 0.25 0.1
5454T Min.           - 0.5 2.4 0.05
Max. 0.25 0.40 0.10 1.0 3.0 0.20 0.25 0.20

Specification of aluminum plate sheet for liquid tank


Alloy Series Thickness(mm) Width(mm) Length(mm)
5083T Min. 4 1000 2000
Max. 8 2400 12600
5182T Min. 4 1000 2000
Max. 8 2400 12600
5454T Min. 4 1000 2000
Max. 8 2400 12600

Mechanical Property of aluminum plate sheet for liquid tank

Alloy Series Temper Yield Strength
Rp(Mpa)
Tensile Strength Rm(Mpa) Elongation A(%)

5083T O, H111,
H112
≥125
≥125
270-350
≥275
≥15
≥12
5182T O, H111 ≥110 255-315 ≥16
5454T O, H111,
H112,
H32
≥85
≥125
≥180
215-275
≥220
250-305
≥17
≥8
≥8
