Aluminum sheet for special Vehicle

5052 5083 5454 6061 Aluminum coil sheet for refrigerated truck
Some vehicles use thermal insulation materials, equipped with cold and warm air conditioning, the inner wall of the 3003 anodized embossed aluminum. .

Aluminum and steel in the relationship between the performance and the maximum temperature difference is that steel has low temperature brittleness, and aluminum and Aluminum Alloy no brittleness at low temperature, when the temperature decreases, the increase of aluminum and Aluminum Alloy in strength at the same time, the plastic is increased with the decrease of temperature and, therefore Aluminum Alloy good materials for producing the cryogenic equipment. The low temperature performance of common automobile aluminum alloy is as follows:

5052 aluminum sheet

5083 aluminum sheet

5454 aluminum sheet

6061 aluminum sheet

5052 aluminum sheet

5083 aluminum sheet

Low Temperature Properties of Common Automobile Aluminum Alloy
Alloy & Temper Temperature/℃ Tension Strength
Rm/N.mm¯²
Yield Strength  Rp₀.₂/N.mm¯² Elongation A₅/%
5052 O -196 303 110 46
-80 200 90 35
-28 193 90 32
24 193 90 30
100 193 90 36
5052 H34 -196 379 248 28
-80 276 221 21
-28 262 214 18
24 262 214 16
100 262 214 18
5052 H38 -196 414 303 25
-80 301 262 18
-28 290 255 15
24 290 255 14
100 276 255 16
5083 O -196 379 131 46
-80 369 117 35
-28 262 117 32
24 262 117 30
100 262 117 36
5454 O -196 370 130 39
-80 255 115 30
-28 250 115 27
24 250 115 25
100 250 115 31
5454 H32 -196 405 250 32
-80 290 215 23
-28 285 205 20
24 275 205 18
100 270 200 20
5454 H34 -196 435 285 30
-80 315 250 21
-28 305 240 18
24 305 240 18
100 295 235 18
6061 T6 -196 414 324 22
-80 338 290 18
-28 324 283 17
24 310 276 17
100 290 262 18
6063 T5 -196 255 165 28
-80 200 152 24
-28 193 152 23
24 186 145 22
100 165 138 18

Aluminum alloy is used as semi trailer refrigerator car, one is to reduce self weight of vehicle body, the other is aluminum is a clean, harmless, environmentally friendly metal, easy to clean, no absorption and smell. The walls of the refrigerated truck is three layer composite material, the upper and lower is aluminum, the middle heat insulating material.

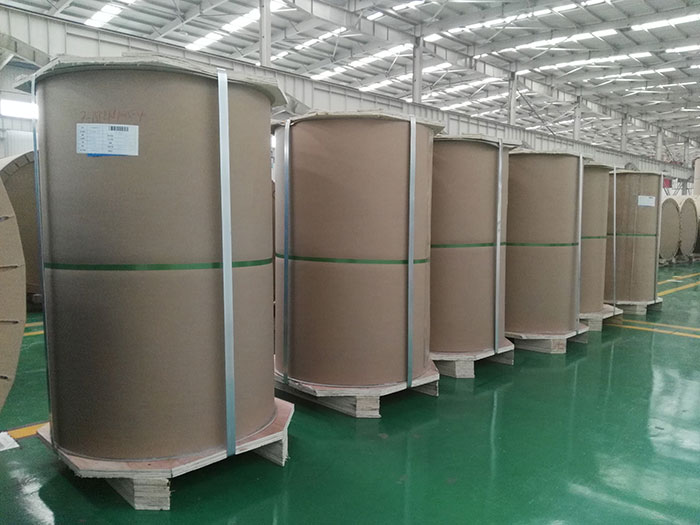

5052 5083 5454 6061 Aluminum coil sheet for refrigerated truck
Alloy: 5052 5083 5454 6061
Temper: O, H32, H34, H36, H38
Thickness: 0.5mm up to 6mm
Width: 1000mm up to 2600mm
Length: 2000mm up to 6000mm
